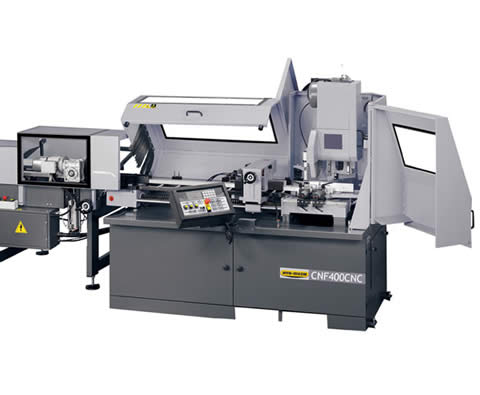

15" HYD-MECH ... DOUBLE MITERING COLD SAW
Click to enlarge
HomeSaws - New & UsedCold Saws - New & Used. 15″ HYD-MECH … DOUBLE MITERING COLD SAW
Previous product
14.5" HYD-MECH ... DOUBLE MITERING COLD SAW
14.5" HYD-MECH ... DOUBLE MITERING COLD SAW
Back to products
Next product
14" HYD-MECH ... DOUBLE MITERING COLD SAW
14" HYD-MECH ... DOUBLE MITERING COLD SAW

15″ HYD-MECH … DOUBLE MITERING COLD SAW

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: CNF400-CNC
Type:  CNC Automatic – Non-Ferrous (Pneumatic Vise)
Year: New

SPECIFICATIONS:

Blade Size………….. 15-3/4”
Motor Size………….. 6 HP – 220/440V -3 Phs
Arbor Speed (2)……… 1700/3400 RPM
Vise Opening………… 7-1/2”
Weight……………… 2350 Lbs
Dimension (LxWxH)……. 70″ x 97″ x 75″

Max Cutting Capacities:
Degree
90 Round Solids………… 5″
45 L & R Round Solids…… 2-3/4″
60 Left Round Solids……. 2″
90 Round Tubing………… 5″
45 L & R Round Tubing…… 4-1/2″
60 Left Round Tubing……. 4-1/2″
90 Square Solids……….. 4-3/4″
45 L & R Square Solids….. 2-3/4″
60 Left Square Solids…… 2″
90 Square Tubing……….. 4-3/4″
45 L & R Square Tubing….. 4″
60 Left Square Tubing…… 3-1/2″
90 Rectangle Tubing…….. 7″ x 4″
45 L & R Rectangle Tubing.. 4-3/4″ x 4″
60 Left Rectangle Tubing… Up to 3-1/2″

EQUIPPED WITH:

Vertical Pneumatic Vise
Control Panedl w/E-Stop
Blade Brush
Flood Coolant w/Pump
(1) Blade

MACHINE FEATURES:

Automatic w/Semi-Automatic Mode
Programmable w/(32) Job Memory (Length & Quality)
Ball Screw Shuttle Vise w/40″ Single Stroke (99 Strokes Max)
Electro-Mechanical Head Feed
Double Mitering Head (60 Degree L & 45 Degree L&R)
Adjustable “Anti-Burr” Clamp

OPTIONAL ACCESSORIES:

Double Suction System
T2500 Chip Collector
Foot Pedal w/E-Stop
Extended Shuttle Vise
2nd Pneumatic Vise
Set of Comb Jaws w/Loading Table
CB6001 Automatic Incline Loading Table

COMMENTS:  Mfg. In North America

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location
​
TERMS:  Check w/Order

All prices subject to change without notice

SKU: 4366 Category: Cold Saws - New & Used.
