15" HYD. CHUCK VIPER ... SLANT BED LATHE
Click to enlarge
Home Lathes New and Used CNC Lathes - Slant Bed 15″ HYD. CHUCK VIPER … SLANT BED LATHE

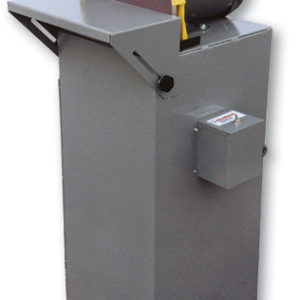

12" KALAMAZOO ... DISC SANDER
12" KALAMAZOO ... DISC SANDER
Back to products
X=39" - Y=15" - Z=20" MAGNA ... VERTICAL MILL
X=39" - Y=15" - Z=20" MAGNA ... VERTICAL MILL

15″ HYD. CHUCK VIPER … SLANT BED LATHE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model:  VT-33-B/BL … Fanuc CNC Control
Spindle Hole: 5.15″
Type:  Slant Bed
Year:  New

SPECIFICATIONS:

Control Type:………….. Fanuc Oi
Swing Over Bed:………… 26.8”
Dist Between Centers:…… 23.2” – 42.9” – 62.6”
Max. Turning Diameter:….. 22”
Max. Turning Length:……. 21.7” – 41.3” – 62.6”
Spindle Nose:………….. A2-11
Spindle Hole:………….. 5.15”
Bar Capacity:………….. 4.52”
Chuck Size:……………. 15”
Spindle Speeds:………… 2400 RPM
Number of Tool Stations:… (12)
Tailstock Taper:……….. #5 MT
Motor Size:……………. 50 HP – 220V – 3 Phs
Rapid Traverse:………… “X”=787 IPM … “Z”=944 IPM
Weight:……………….. 16,535 – 17,850 – 19,180 Lbs
Dimensions…………….. To be Advised

EQUIPPED WITH:

Fanuc Oi … Control
15” – 3 Jaw Hydraulic Chuck
(12) Station Turret
Hydraulic Tail Stock & Quill (Programmable)
Heavy Duty “Box Ways”
Chip Conveyor
Coolant System w/Roll Out Chip Tray
Work Light
(1) Set Each Hard & Soft Jaws
Tool Kit
“Hi/Low” Gear Transmission

COMMENTS:

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER:

Need a Part ?
Have a Technical Problem ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 9053 Category: CNC Lathes - Slant Bed
