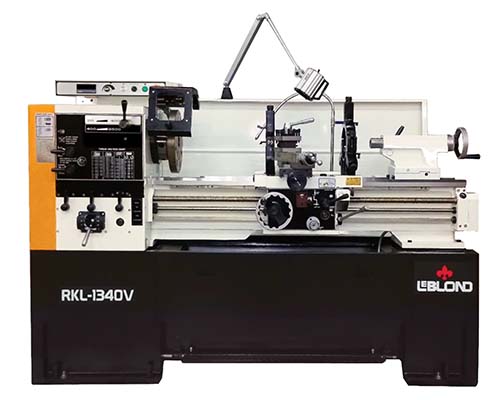

Model: RKL-1300V
Type: Electronic Variable Speed
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 14.2”
Swing Over Cross Slide… 8.4”
Swing in Gap…………. 21”
Dist Between Centers….. 60”
Spindle Nose…………. D1-6
Spindle Hole…………. 2.1”
Bed Width……………. 10.3”
Spindle Speeds (EVS)….. 20 – 2500 RPM
Threading……………. Inch/Metric
Motor Size…………… 5 HP – 220V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 3550 Lbs
Dimensions…………… 114″(l) x 46″(w) x 70″(h)
EQUIPPED WITH:
(4) Way Toolpost
6″ Steady Rest w/Roller Jaws
3.5” Follow Rest w/Bronze Jaws
12″ Face Plate
Telescopic Taper Attachment
Full Length Splash Guard
Chuck Guard
Coolant System
Chip Pan
Brake Pedal
Halogen Work Light
Leveling Pads
Tool Box w/Tools
Operation & Parts Manual
MACHINE FEATURES
2.1″ Spindle Hole
H & G Gears & Bed Ways
Gap Bed
Spindle Supported by (3) Tapered Roller Bearings
Meehanite Casting Bed
Precision Ground Bed
OPTIONAL ACCESSORIES:
8″ – 3 Jaw “Set Tru” Bison Chuck
8″ – 6 Jaw “Set Tru” Bison Chuck
Taper Turning Attachment
Lever Collet Attachment
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
“Aloris Type” Quick Change Toolpost w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0″ – 1/2″ Capacity)
#4 MT Live Center
Newall Digital Readout
