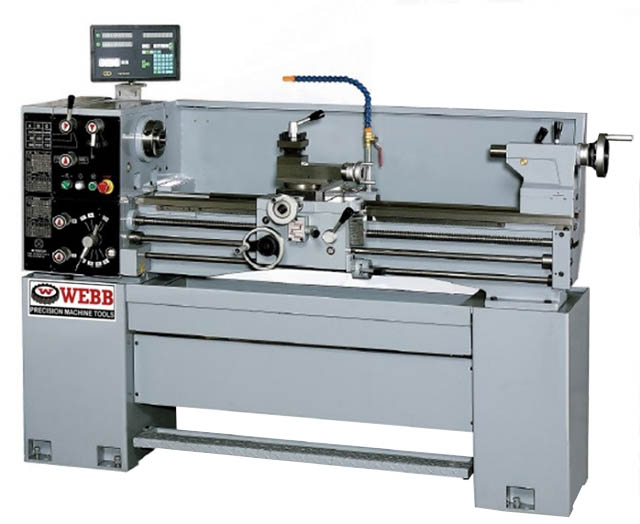

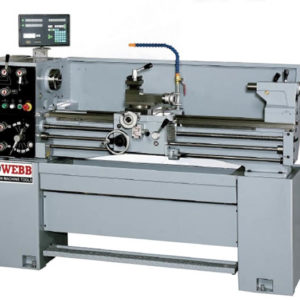

Model: WB-1440
Type: Precision Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 14”
Swing Over Cross Slide… 8-3/4”
Swing in Gap…………. 20-3/4”
Dist Between Centers….. 40”
Spindle Nose…………. D1-4
Spindle Hole…………. 1-1/2”
Bed Width……………. 7-9/16”
Spindle Speeds (9)……. 82 – 2000 RPM
Threading……………. Inch/Metric
Motor Size…………… 3 HP – 220V – 3 Phs
Tailstock Taper………. #3 MT
Gross Weight…………. 720 Lbs
Dimensions…………… 73″L x 30″W x 58″H
EQUIPPED WITH:
6” – 3 Jaw “Scroll” Chuck
8” – 4 Jaw “Independant” Chuck
6” & 8” Back Plate
(4) Way Toolpost
Steady Rest
10” Face Plate
Full Length Rear Splash Guard
Coolant
Floor Stand
Tool Box w/Tools
Operator & Parts Manuals
MACHINE FEATURES
1-1/2″ Spindle Hole
“Heavy Duty” Meehanite Casting
Gap Bed Design
H & G Headstock Gears
H & G Bed Ways
Inch Metric Dials
Foot Brake
OPTIONAL ACCESSORIES:
8″ – 3 Jaw “Set Tru” Chuck
8″ – 6 Jaw “Set Tru” Chuck
“Aloris Type” Quick Change Toolpost w/(4) Holders
Taper Turning Attachment
Chuck Guard
5C Collet Closure
Work Light
Single Saddle Stop
Newall Digital Readout
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Techicnial Question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
