14" x 40" TRUMP ... LATHE 1-9/16" SPINDLE HOLE
Click to enlarge
Home Lathes New and Used Lathes - Conventional 14″ x 40″ TRUMP … LATHE 1-9/16″ SPINDLE HOLE
X=59" - Y=27" - Z=31.5" MAGNA ... VERTICAL MILL
X=59" - Y=27" - Z=31.5" MAGNA ... VERTICAL MILL
Back to products
32" x 32" MAGNA-CUT ... "SEMI-AUTOMATIC" HORIZONTAL BANDSAW
32" x 32" MAGNA-CUT ... "SEMI-AUTOMATIC" HORIZONTAL BANDSAW

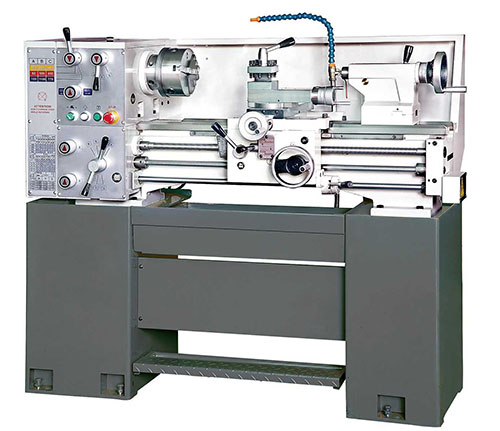

14″ x 40″ TRUMP … LATHE 1-9/16″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: LD … Geared Head
Type: Tool Room Lathe
Year: New

SPECIFICATIONS:

Swing Over Bed:……….. 14”
Swing Over Cross Slide:… 8-3/4”
Swing In Gap:…………. 20-3/4”
Dist. Between Centers:…. 40”
Spindle Nose:…………. D1-4
Spindle Hole:…………. 1-9/16”
Bed Width:……………. 7-9/16”
Spindle Speeds:(9)…….. 82 – 2000 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 3 HP – 220/440V – 3 Phs
Tailstock Taper:………. # 3 MT
Weight:………………. 1370 Lbs
Dimensions……………. To be Advised

EQUIPPED WITH:

STANDARD EQUIPMENT

6”- 3 Jaw Chuck
8”- 4 Jaw Chuck
(4) Way Tool Post
Coolant System
Splash Guard
Chip Tray
10” Face Plate
Center Sleeve & Centers
Thread Dial
Change Gears
Foot Brake
Tools & Tool Box
Steady Rest
Operation Manual

MACHINE FEATURES

1-9/16” Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Cross Feed Screw
H & G Bed Ways
Inch / Metric Threading w/ Dual Scales
Built-In Safety Overload Clutch
Main Spindle Equipped w/ (2) Precision Taper Roller Bearings

OPTIONAL ACCESSORIES AVAILABLE:  P.O.R.

8” – 3 Jaw “Set Tru” Chuck
8” – 6 Jaw “Set Tru Chuck
Taper Turning Attachment
Lever Collet Attachment… (Installed)
5C Collet Set (1/16” – ,1/18” x 1/16”)
“Aloris Type” Q.C. Tool Post w/5 Holders
14N Jacobs “Ball Bearing” Chuck w/ Arbor (0” – 1/2” Capacity
#3 MT Live Center
(2) Axis Newall Digital Readout… (Installed)
DRO Installed

COMMENTS:

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.: Location

TERMS:  Check w/Order

All prices subject to change without notice
