12-1/2" SCOTCHMAN ... "FERROUS" COLD SAW
14" HYD-MECH ... DOUBLE MITERING COLD SAW

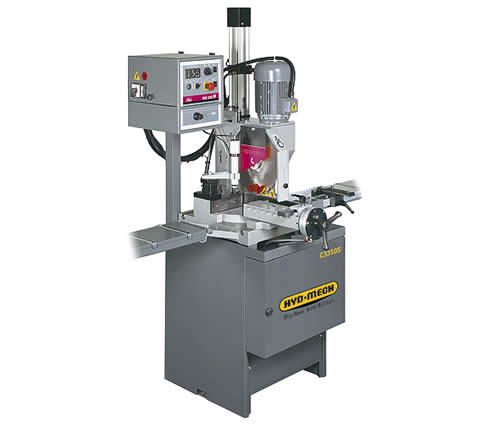

14″ HYD-MECH … DOUBLE MITERING COLD SAW

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model:  PNF350-2S
Type:  Automatic – Non-Ferrous
Year:  New

SPECIFICATIONS:

Blade Size…………… 14”
Motor Size…………… 3.5/5 HP – 220/440V – 3 Phs
Speed(2)…………….. 1700/3400 RPM
Weight………………. 615 Lbs
Dimensions…………… 59″L x 44″W x 60″H

Max Cutting Capacities:
Degree
90 Round Solids………… 3-1/2″
45 L & R Round Solids…… 3″
90 Round Tubing………… 4-3/4″
45 L & R Round Tubing…… 4-1/4″
90 Square Solids……….. 3″
45 L & R Square Solids….. 2″
90 Square Tubing……….. 4″
45 L & R Square Tubing….. 3-3/4″
90 Rectangle Tubing…….. 7″ x 2-3/4″
45 L & R Rectangle Tubing.. 5-1/3″ x 2-1/2″

EQUIPPED WITH:

(2) Pneumatic Vises
Auto Lubrication System
(1) Blade

MACHINE FEATURES

Semi-Automatic
Mitering Head (45 Degree Left & Right)
Saw Head Tilts (45 Degree Left)
Rotating Table

OPTIONAL ACCESSORIES: P.O.R.

Pneumatic Vise
T2500 Chip Collector
Material Stop w/24” Ruler
“Flip Over” Material Stop w/60” Ruler
5’ Roller Table
Roller Table Support Stands
Roller Table Adapter Required w/Roller Table
Extension for Out Feed Roller Table
Carbide Tipped Blade
(5) Carbide Tipped Blade

COMMENTS:  Mfg. in North America!

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 13744 Category: Cold Saws - New & Used.
