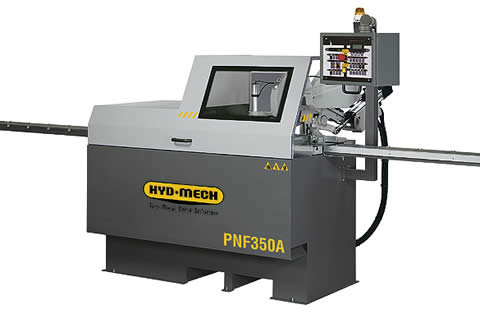

Model: PNF350-A
Type: CNC Automatic – Non-Ferrous
Year: New
SPECIFICATIONS:
Blade Size……………….. 14”
Motor Size……………….. 3.5/5 HP – 220/440V – 3 Phs
Arbor Speed (2)…………… 1700/3400 RPM
Vise Opening……………… 7”
Weight…………………… 1267 Lbs
Dimensions (LxWxH)………… 67″ x 93″ x 69″
Max Cutting Capacities:
Degree
90 Round Solids……………… 3-1/2″
45 L & R Round Solids………… 3″
45 Tilted Head Round Solids…… 2″
90 Round Tubing……………… 4-3/4″
45 L & R Round Tubing………… 4-1/4″
45 Tilted Head Round Tubing…… 2″
90 Square Solids…………….. 3″
45 L & R Square Solids……….. 2″
45 Tilted Head Square Solids….. 2″
90 Square Tubing…………….. 4″
45 L & R Square Tubing……….. 3-3/4″
45 Tilted Head Square Tubing….. 2″
90 Rectangle Tubing………….. 7″ x 2-3/4″
45 L & R Rectangle Tubing…….. 5-1/3″ x 2-1/2″
45 Tilted Head Rectangle Tubing.. 5-1/3″ x 1-1/3″
EQUIPPED WITH:
(2) Pneumatic Vises w/Moveable Jaws
Control Panel w/E-Stop
Blade Brush
(1) Blade
MACHINE FEATURES:
Automatic w/Semi-Automatic Mode
Rotating Table
Programmable w/(99) Job Memory (Length & Quantity)
“Ball Screw” Shuttle Vise w/40” Single Stroke
Pneumatic Head Feed
Double Mitering Head (45 Degree L&R)
Head Tilts (45 Degree Left)
OPTIONAL ACCESSORIES:
Mist Lubrication System
T2500 Chip Collector
“Flip Over” Material Stop w/60″ Ruler
5′ Roller Table
Roller Table Support Stands
Roller Table Adapter
Ruler Extensions for Out Feed Roller Tables
Oxide Coated Blade
COMMENTS: Mfg. In North America
