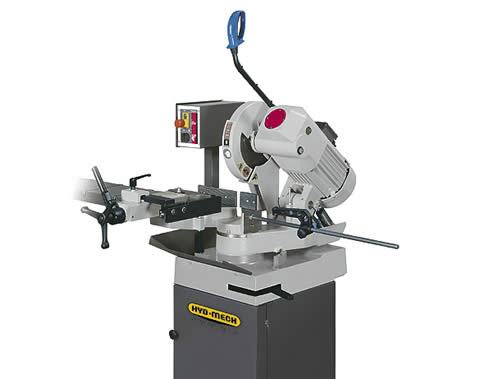

Model: CS-355-M
Type: Non-Ferrous Cold Saw – Manual
Year: New
SPECIFICATIONS:
Blade Size…………… 14”
Motor Size…………… 5.5 HP – 220V – 3 Phs
Arbor Speed…………… 3200 RPM
Max. Cutting Capacity:
Rounds Solids:
at 90 Degrees… 2.362”
at 45 Degrees… 1.575”
Round Tubing:
at 90 Degrees… 4.331”
at 45 Degrees… 2.953”
Square Tubing:
at 90 Degrees… 4.25”
at 45 Degrees… 2.935”
Rectangle Tubing:
at 90 Degrees… 4.25” x 3.5”
at 45 Degrees… 2.953” x 2.362”
Weight………………. 790 Lbs
Dimensions (LxWxH)……. 60″ x 44″ 48″
EQUIPPED WITH:
Non-Ferrous
Manual ‘Downfeed”
Miter Head
High Speed Non-Ferrous
Double Mitering
– 90 Degree Left
– 45 Degree Right
Manual, Self Centering, Dual Clamping
Vise (Clamps Both Sides of Blade)
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All Prices subject to change without notice
