Model : S-20-A … Automatic
Type: Scissors
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round:
Max. Height….. 13”
at 90 Degrees… 13”
at 45 Degrees… 12”
at 60 Degrees… 8-1/2″
Rectangle:
Max. Width…… 18”
at 90 Degrees… 13” x 18”
at 45 Degrees… 13” x 10-3/4”
at 60 Degrees… 13” x 7-3/4”
Blade Size:……….. 1” x 0.035” x 14’10”
Blade Speed:(VS)…… 75-350 SFM
Motor Size:……….. 5 HP-220/440V-3 Phs
Weight:…………… 3800 Lbs
EQUIPPED WITH:
Fully Automatic w/Bar Feed
TS-50 Windows Based Touch Screen Control
(99) Job Memory – (5) Can Be Set To Run Consecutively
Swivel Head
60 Degrees One Way Mitering Capability
Powered Blade Brush
Carbide Guides (Pre-Set) On Adjustment
Out-Of-Stock Switch
Coolant Pump W/ Wash Down Hose … 10 Gallon Tank
“Positive” Hydraulic Down Feed
(2) Hydraulic Vises (1) w/ Shuttle Stroke (0-27”)
Roller Infeed Table & Shuttle Vise
Work Light
ADDITIONAL OPTIONS AVAILABLE … P.O.R.
Hydraulic Overhead Bundling (2) Vises
Mist Lubrication System
Variable Vise Pressure
5” Idler Conveyors
COMMENTS:
Mfg. in North America

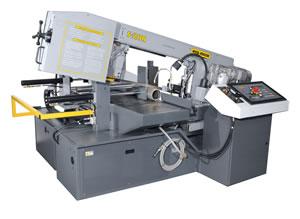

Catalog Photo’s
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
