Model: HFA-250W
Year: New
Type: Automatic
SPECIFICATIONS
Cutting Capacity:
Round
At 90 Degrees… 10”
Rectangle Or Square
At 90 Degrees… 12” x 10”
Work Height……… 27.6”
Blade Size………. 1-1/4” x 0.042” x 11’-6”
Blade Speed (VS)…. 89 – 295 SFPM
Motor Size………. 5 HP-220 Or 440V-3 Phs
Weight………….. 3310 Lbs
EQUIPPED WITH:
MACHINE FEATURES:
Variable Blade Speed
Heavy Duty Worm Drive Gear Reducer
Drive Wheel Transmission
Pressure/Flow Feed Control
Idler Wheel Motion Detector
Self Diagnostics
STANDARD EQUIPMENT:
NC Backgauge
Motion Detector
Wheel Cover Limit Switch
Pressure Flow Valve
Powered Chip Conveyor
Full Stroke Vise
Split Vise
Operators Console
NC FUNCTIONS
Auto Trim Cut
Hour Meter
Blade Deviation Monitor
(99) Cut-Off Lengths From The Same Bar
Number Of Pieces Required
Number Of Pieces Cut
Blade Life & History
COMMENTS:

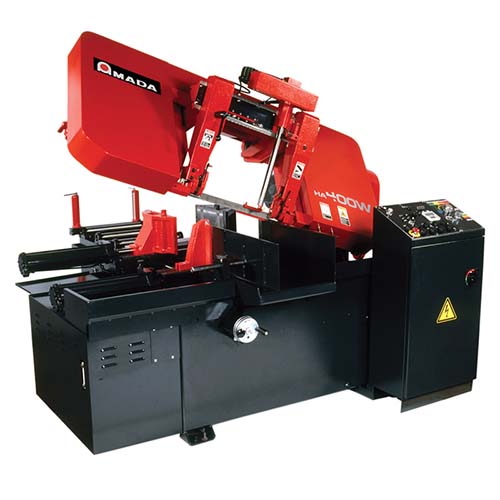

Catalog Photo
