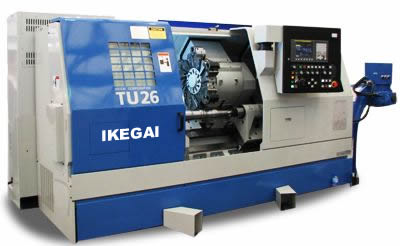

Model: TUR-26 … Fanuc Oi-TC CNC Control
Spindle Hole: 3.4″
Year: New
Type: Slant Bed
SPECIFICATIONS:
Control Type:………….. Fanuc Oi-TC
Swing Over Bed:………… 27.5” & 40”
Max. Turning Diameter:….. 16.5”
Max. Turning Length:……. 25.5” & 39.3”
Spindle Nose:………….. A2-8
Spindle Hole:………….. 3.4”
Bar Capacity:………….. 3”
Chuck Size:……………. 12” Hydraulic
Spindle Speeds:………… (2) Ranges … 8 – 4000 RPM
Number of Tool Stations:… (12) “Bi-Directional”
Tailstock Taper:……….. #5 MT
Motor Size:……………. 20/25 HP-220V-3 Phs
Rapid Traverse:………… X-787 IPM … Z-945 IPM
Weight:……………….. 10,600 – 11,100 Lbs
Dimensions…………….. To be Advised
EQUIPPED WITH:
Live Tooling
Fanuc Oi-TC CNC Control
Constant Surface Speed
Load Meter
Spindle Speed Override
Bar Feed Interface
Work Preset Counter
(12) Station ATC
Thru Tool Holder Coolant
Geared Head Stock
Hydraulic Tail Stock … w/Programmable Quill
Hydraulic Clamping, Chuck & Tail Stock
Meehanite Casting
Hydraulic Foot Pedal
H & G Box Ways
Automatic Lubrication
Chip Pan
#5 MT Live Center
Soft Jaws
Tool Holder Package
Chip Conveyor … Not Standard
Optional Accessories Available: … (P.O.R.)
10” Hydraulic Chuck (Thru Hole)
12” Hydraulic Chuck (Solid)
12” Hydraulic Chuck (Thru Hole)
Chip Conveyor & Hopper
Parts Catcher
Barfeed Controler Interface
Draw Bar Adaptor
HPPA Tool Setter (High Precision)
Installation by Service Technician
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER:
Need a Part ?
Have a Technical Question ?
​CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
