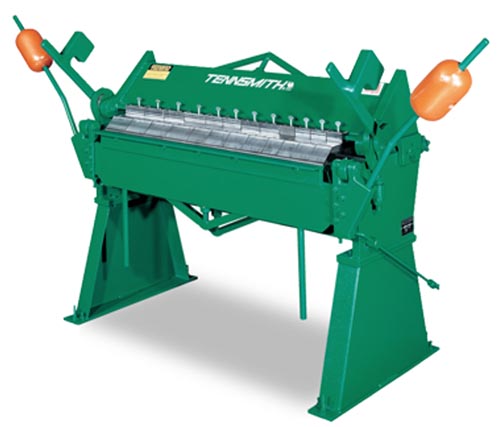

Model: F6-72-12
Type: Heavy Duty Box & Pan
Year: New
SPECIFICATIONS:
Bending Length………………… 72”
Maximum Lift of Beam…………… 2-1/4″
Front & Rear Beam Adjustment……. 1/2″
Maximum Depth of Box…………… 6″
Minumum Reverse Bend…………… 1/4″
Minumum Flange in Capacity……… 1″
Finger Widths…………………. 3″, 4″ & 5″
Weight……………………….. 2825 Lbs
Dimensions (LxWxH)…………….. 110″ x 53″ x 60″
CAPACITIES:
Mild Steel ……. 12 ga
Stainless …….. 16 ga
EQUIPPED WITH:
Welded Steel Constructions
Leveling Screws & Lock Nuts on the Pedestals
Jack Screws & Tension Bolts on Apron, Base & Upper Leaf
Removable Aprong Angel
COMMENTS: Mfg. In U.S.A.
