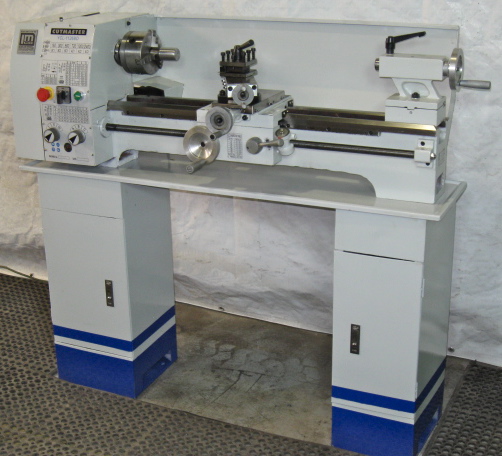

Model: YCL Series
Type: Bench Model
Year: New
SPECIFICATIONS:
Swing Over Bed:……….. 10.625”
Swing Over Cross Slide:… 6.375”
Swing In Gap:…………. No Gap
Dist. Between Centers:…. 26”
Spindle Nose:…………. Threaded 1-3/4” X 8 TPI
Spindle Hole:…………. 1”
Bed Width:……………. 4-1/2”
Spindle Speeds:(6)…….. 150 – 2400 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 1 HP – 115V – 1 Phs
Tailstock Taper:………. #3 MT
Weight:………………. 560 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
5” – 3 Jaw Chuck
6-1/2” – 4 Jaw Chuck
Steady Rest
Follow Rest
4 Way Tool Post
Face Plate
Tail Stock
Tool Box & Tools
Change Gears
(1) # 3 MT Dead Center
(1) # 4 MT Dead Center
Emergency Stop Button
“Bench” Model
“OPTIONAL ACCESSORIES” AVAILABLE … P.O.R.:
“Floor” Stand
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
