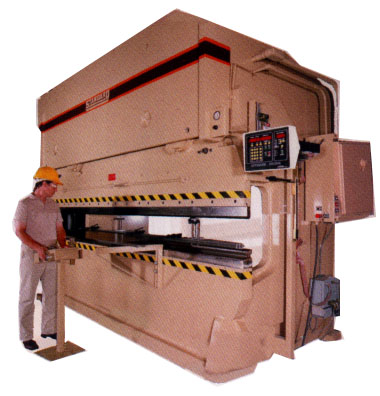

Model: AB-1000-14
Year: New
Type: Hydraulic
SPECIFICATIONS:
Tonnage………………. 1000 Ton
Bending Length………… 168″
Dist. Between Housings…. 149″
Throat Depth………….. 10”
Open Height…………… 24″
Stroke Length…………. 12”
Closed Height…………. 12″
Fast Approach Speed……. 45 IPM
Fast Return Speed……… 80 IPM
Press Speed…………… 17 IPM
Motor Size……………. 100 HP – 220/440V – 3 Phs
Capacities (Mild Steel)… 7/8″
Weight:………………. 135,000 Lbs
EQUIPPED WITH:
In-Line Depth Stop
Hydraulic Pressure Tonnage Control w/Gauge
Portable Control Station w/(2) Controls:
– Inch Control
– Emergency Stop
Operation & Parts Manual
MACHINE FEATURES:
“Large Bore” Single Hydraulic Cylinders
Massive “Heavy Duty” Welded Frame
Full Tonnage – Entire Length Of Bed & Ram Stroke
Manifold Centralized Lube System
Hand/Foot Safety Sequence w/Foot Switch
+/- 0.001” Ram Repeatability
Simple & Precise Ram Adjustment
All Components “Off The Shelf”
Off-Center Load Capability
OPTIONAL ACCESSORIES:
14′ Filler Block
Light Curtain w/Foot Switch
(4) Position In-Line Depth Stop
(2) Axis Automec CNC Backgauge Model 300/G24D
– 24″ of Gauge Travel
– Inch to Metric Converter
– Bend Allowance
– Off-Line Programming
– Auto Ram Reference
– Onsite Training
– (300) Programs
– (11) Digit Part Numbers
– RS-232 Interface
– Ram Angle Mode
– Gauge Retract/Delay
– (32) Bends
– Ram Depth Mode
– Teach Mode
– Tooling Library
– Gauge Reversal on Pinch Point
Extended (7) Year Warranty, (2) Year PLC & (5) Year on Site
COMMENTS: Mfg. In U.S.A.
NOTE: Hydraulic Oil “Not Included”
