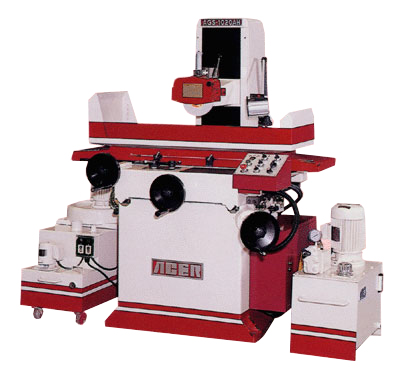

Model: 1020-AHD
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 10” x 20”
Longitudinal Travel…….(X).. 20-1/2”
Cross Travel…………..(Y).. 11”
Vertical Travel………..(Z).. 19-3/4”
Center Line Spindle To Table… 19-3/4”
Wheel Size………………… 8” x 1/2” x 1-1/4”
Spindle Speed……………… 3500 RPM
Motor Size…Voltage……….. 2 HP – 220/440V – 3 Phs
Axis……………………… (3)Axis Automatic
Table Weight Capacity………. 700 Lbs
Weight……………………. 2970 Lbs
Dimensions………………… 67″(l) x 82″(w) x 83″(h)
STANDARD EQUIPMENT​:
Automatic Incremental Down Feed
Manual Diamond Dresser
Splash Guard
Grinding Wheel
Wheel Balancing Base & Arbor
Grinding Wheel
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
Hydraulic Table
Electronic Cross Feed
(2) Speed Rapid Elevation Travel
Auto Incremental Downfeed
Auto Lubrication
Precision Turcite-B Ways
Class “7” Spindle Bearings (Paired)
OPTIONAL EQUIPMENT (P.O.R.):
8” x 18” Acer Permanent Magnetic Chuck (Fine Pole)
8” x 18” Acer Electro Chuck w/Control (Regular Pole)
8″ x 18″ Walker Magnetic Chuck (Regular Pole)
8″ x 18″ Walker Electro Chuck w/Control (Fine Pole)
Overhead Manual Parallel Dresser
Coolant System
Dust Collector & Coolant System
Coolant System w/Paper Filter
Coolant System w/Magnetic Separator & Paper Filter
Extra Wheel Flange
(2) Axis Newall Digital Readout
Micro Downfeed System
