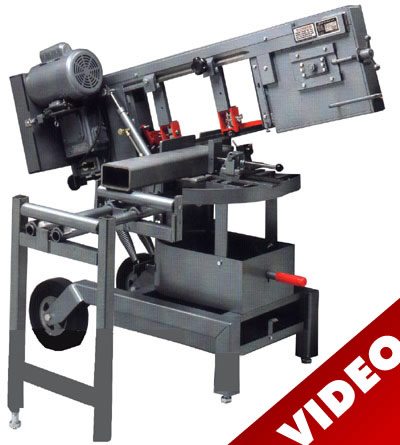

Model: 1600 … Step Pulley
Type: Scissors – Semi-Automatic
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
Max. Height…. 10″
at 90 Degree… 10″
at 45 Degree… 6-7/8” (L & R)
Rectangle
Max. Width….. 11″
at 90 Degree… 10” x 11”
at 45 Degree… 6-1/2” x 10” (L & R)
Blade Size:………. 10”1” x 1″ x .035″
Blade Speed(3)……. 70-135-250 FPM
Motor Size:………. 1 HP – 110/220V – 1 Phs
Weight:………….. 480 Lbs
Dimensions (LxWxH)… 59-1/4″ x 24-3/4″ x 47″
EQUIPPED WITH:
Head Swivels 45 Left or Right
Stock Remains inOne Position for all Cuts
One Step Conversion to Vertical Band Saw
Built-In Precision Protractor
Automatic Shut-Off Switch
Hydraulic Feed Control
Replaceable Aluminum Table Plate
Wheels on Base for Portability
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Vertical Table w/Blade Guard
Stock Stand w/Adjustable Gauge, Micro-Adjuster (2) Rollers
Single Stock Support Stand w/(1) Roller Moveable
Air System (Cleans & Cools Blade)
COMMENTS: Mfg. in USA !
