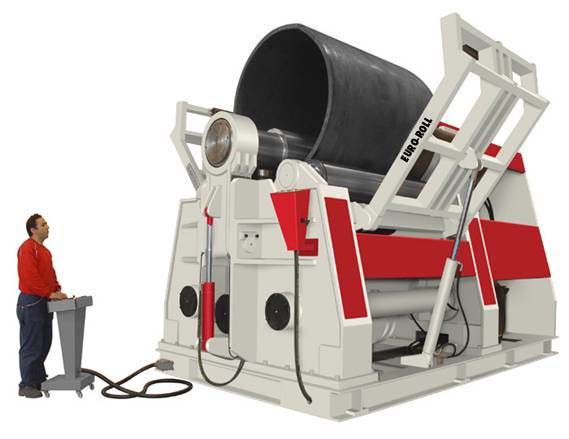

Model: AHS-30/40
Type: Double Pinch
Year: New
SPECIFICATIONS:
Roll Length:…………….. 122”
Top Roll Diameter:……….. 21.26”
Rolling Cap. (Mild Steel):… 1.97” w/36,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… 1.57” w/36,000 PSI Yield Material
Min. Diameter (Rolling):….. 63.78”
Min. Diameter (Pre-Bend):…. 63.78”
Number of Rolls (Total):….. (4)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 157 IPM
Motor:………………….. 75 HP – 220/440V – 3 Phs
Weight:…………………. 114,400 Lbs
EQUIPPED WITH:
(4) Roll Double Pinch
“Top” Pinch Roll … (Middle)
“Powered”
Nonadjustable
“Bottom” Pinch Roll … (Middle)
”Powered”
”Motorized” Adjustment
“Bottom” Forming Roll … (Front & Rear Side)
“Non-Powered”
“Motorized” Adjustment
Hardened Rolls
Hydraulic Driven Rolls (Hydraulic Motor & Planetary Gear Reducer)
(2) Adjustable Side Rolls W/D.R.O.
Pinch & Side Rolls Independently Adjustable
Leveling System To Insure Parallelism Of All (3) Adjustable Rolls
Forward & Reverse Rotation (Push Button)
Adjustable Pinch Roll Pressure
(2) Speed Rotation Switch
Hydraulic Drop End W/Automatic Raise Of The Top Roll
Inclinable Pinch & Side Rolls For Cone Rolling
Movable Control Console
Push Button Control Of Roll Adjustment & Rotation
Switch Control Of Roll Speed
Push Button Open/Close Hydraulic Drop End
Digital Readouts
E-Stop Button
Machine Perimeter E-Stop Cable
Cone Rolling Attachment (Reduced Capacity)
OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.
Variable Speed Rotation
Hydraulic Oil Cooler
(2) Side Supports
(1) Overhead Support
COMMENTS: Mfg. In Europe
