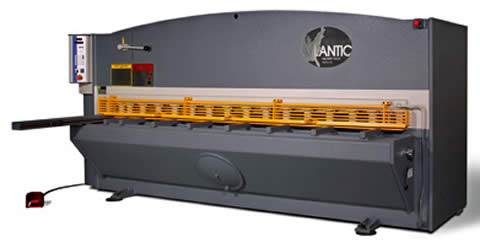

Model: HDE 1/4” x 6’
Type: Hydraulic
Year: New
SPECIFICATIONS:
Length of Cut:……….. 80”
Max. Thickness of Cut:… 1/4”
Strokes per Minute:…… 10-25
Motor Size:………….. 15 HP-220/440V-3 Phs
Weight:……………… 7900 Lbs
SHEAR CAPACITIES:
Mild Steel ………….. 1/4”
Stainless …………… 10 ga
Aluminum ……………. 3/8”
STANDARD EQUIPMENT:
40” Squaring Arm w/Flip Over STop
39″ Front Operated Power Backgauge
Shadow Light
Remote Foot Pedal Control
Hi Carbon … Hi Chrome (4) Edge Blade
“NO” Hydraulic Oil
SP9 Control Features
Key Switch to Switch on the Control
LED Readout of the Backgauge Dimension
LED Readout of the Rake Angle
Programmable Backgauge
0.004” Accuracy
Backlash Compensation
Programmable Rake Angle of the Top Blade
Preset of the Backgauge
Backgauge Retraction
Part Counter
Manual Setting of the Blade Clearance by Hand Level
Emergency Stop Button on the Control
Stroke Control
MACHINE FEATURES:
Guillotine Design – 60,000 PSI
“Under Driven” Hydraulic Cylinder
(3) Position Manual Blade Gap Adjustment (Front Operated)
Electro-Hydraulic Rake Adjustment w/Digital Readout
Steel Welded Construction
“Hold Down” Pressure – Independent from Shear Pressure
OPTIONAL ACCESSORIES AVAILABLE:
Available on Request
COMMENTS: Mfg in Europe
