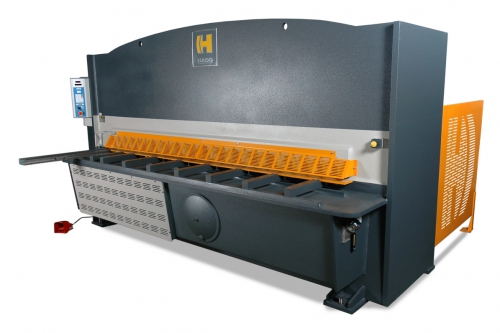

Model: HDS 12’ x 1/2”
Type: Hydraulic
Year: New
SPECIFICATIONS:
Length of Cut:………… 159”
Max. Thickness of Cut:…. 1/2″
Strokes per Minute:……. 7 – 11 SPM
Motor Size:…………… 30 HP – 220/440V – 3 Phs
Weight:………………. 26,000 Lbs
SHEARING CAPACITIES:
Mild Steel……….. 1/2”
Stainless ……….. 3/8”
Aluminum ………. 5/8”
EQUIPPED WITH:
Safety Equipment
40″ Motorized “Swing Away” Backgauge
39″ Squaring Arm
Shadow Light
Ball Transfers
Remote Foot Pedal Control
Hi Chrome…Hi Carbon…(4) Edge Blades
MACHINE FEATURES:
Guillotine Design – 80,000 PSI
“Top Driven” Hydraulic Cylinders
(3) Position – Manual Blade Gap Adjustment (Rear Operated)
Electro – Hydraulic Rake Adjustment w/Digital Readout
Steel Welded Construction
“Hold Down” Pressure – Independent from Shear Pressure
SP9 CONTROL FEATURES:
Key Switch to Switch on the Control
LED Readout of the Backgauge Dimension
LED Readout of the Rake Angle
Programmable Backgauge
0.004” Accuracy
Backlash Compensation
Programmable Rake Angle of the Top Blade
Preset of the Backgauge
Backgauge Retraction
Part Counter
Manual Setting of the Blade Clearance by Hand Lever
Emergency Stop Button on the Control
OPTIONAL ACCESSORIES AVAILABLE:
Available on Request
COMMENTS: Mfg In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject change without notice
