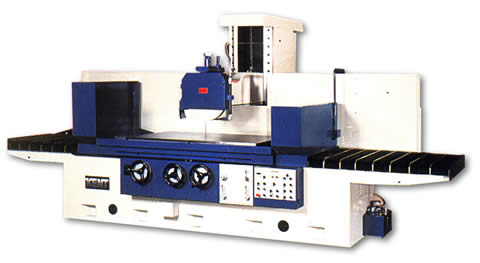

Model: KGS-820-AHD
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size…………………. 32” x 80”
Longitudinal Travel……..(X).. 81-1/8”
Cross Travel……………(Y).. 32-1/8”
Vertical Travel…………(Z).. 34-7/16”
Center Line Spindle To Table…. 35-7/16”
Table Load w/Chuck………….. 5060 Lbs
Wheel Size…………………. 20” x 2” x 5”
Axis………………………. (3) Axis Automatic
Motor Size…………………. 15 HP – 220/440V – 3 Phs
Weight…………………….. 38,500 Lbs
Dimensions…………………. 213″L x 135″W x 113″H
EQUIPPED WITH:
(2) 32” x 40” Semi-Fine Electro-Magnetic Chuck & Control
Variable Power Chuck Control
Magnetic Separator & Coolant System
Hydraulic Parallel Dresser
Table Dresser
Full Length Rear Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
(3) Axis Automatic
Column Traveling “Cross Feed”
Fully Automatic Cycle Control w/Spark-Out Time & Auto Stop
Cast Iron Base
Vee & Flat Turcite Table Ways
Double-V Turcite Cross Ways
P.L.C. Controlled Cross Feed
Auto Lube
Rapid Traverse to Wheel Head (AHD)
Auto Incremental Downfeed – Surface & Plunge Grinding
Precision Spindle – Angular Contact Bearings
OPTIONAL ACCESSORIES (P.O.R.):​
Table Splash Guard (Rear)
Extra Wheel Flange
Hydraulic Oil Cooler
(1) Axis Sony Digital Read Out
Installation & Set-Up
