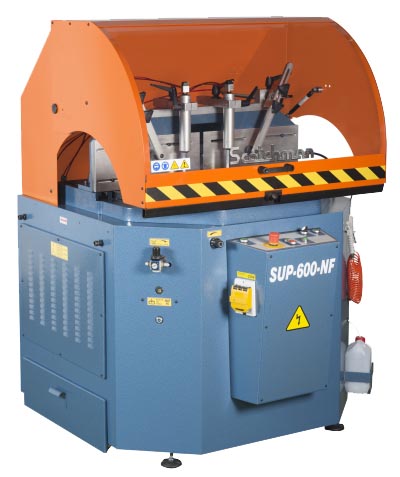

Model: SUP 600-NF
Type: Semi-Automatic – Non-Ferrous (Up Cutting)
Year: New
SPECIFICATION:
Blade Size………….. 24”
Motor Size………….. 5.5 HP – 220V or 440V – 3 Phs
Arbor Speed…………. 3000 RPM
Max Cutting Capacity
Round at 45 Degree….. 9”
Round at 90 Degree….. 9”
Square at 45 Degree…. 7″
Square at 90 Degree…. 8″
Rectangle at 45 Degree. 10″ x 4″
Rectangle at 90 Degree. 15″ x 6″
Weight……………… 1105 Lbs
Dimensions (LxWxH0…… 51-1/4″ x 48″ x 68-3/8″
STANDARD EQUIPMENT:
Dual Palm Buttons
Coolant Tank
(1) Gallon Coolant
Mist Lubrication
(1) 20” Blade
Chip Collector w/ (2) Chip Extraction Ports
(1) Blade Wrench
MACHINE FEATURES:
Semi Automatic
Safety Hood w/safety Switch
Blade Door w/Safety Interlock Switch
Head Miters 45 Degrees Left
Removable Back Fence For Larger Capacity
Emergency Stop Button
OPTIONAL ACCESSORIES:
24” Carbide Blade 132 Tooth
Digital Readout
10’ Material Supply Track
20’ Material Supply Track (2 Pcs)
60’ Material Stop Track (RT or LT)
120’ Material Stop Track (RT or LT)
96” SG Measuring Systems w/16” Roller Conveyor
144” SG Measuring Systems w/16” Roller Conveyor
192” SG Measuring Systems w/18” Roller Conveyor
COMMENTS: Mfg. In USA
