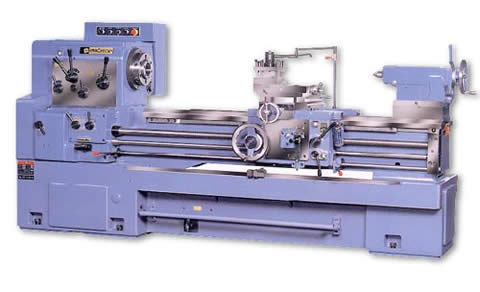

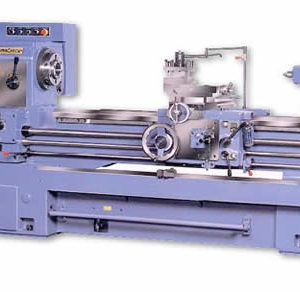

Model: HL-580
Type: Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 22”
Swing Over Cross Slide… 14-3/16”
Swing in Gap…………. 29”
Dist Between Centers….. 80”
Max Turning Length……. 80″
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/32”
Bed Width……………. 16-1/2”
Spindle Speeds……….. (12) 28 – 1350 RPM
Threading……………. Inch / Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 7260 Lbs
Floor Space………….. 144″L x 40″W x 60″H
EQUIPPED WITH:
17-3/4″ Face Plate
(1.5″ – 6″) Steady Rest
(4) Way Toolpost
Micro Carriage Stop
(5) Position Auto Feed Kickout Bar
Coolant System
Thread Dial
Tool Box
Foot Brake
MACHINE FEATURES
Mori Seiki Design & Quality
2-3/64″ Spindle Hole
Spindle Supported at (3) Points by Precision Bearings
Automatic Forced Lubrication to all Slide Ways
Double Wall & Ribbed Bed Ways
H & G Bed Ways & Headstock Gears
Full Length Bed Casting
Hydraulic Disc Foot Brake
Carriage Feed Kick Out Bar
Cross Feed Screw – Runs in Grease Bath
Reverse Feed from the Apron
OPTIONAL ACCESSORIES
12″ – 3 Jaw “Semi Steel” Chuck
12″ – 3 Jaw “Steel” Chuck
12″ – 4 Jaw “Cast Iron” Chuck
12″ – 4 Jaw “Steel” Chuck
16″ – 4 Jaw “Steel” Chuck
Roller Jaws for Steady Rest
Standard Steady Rest
(6″-10″) Steady Rest
Follow Rest
Telescopic Taper Attachment
Rear Toolpost
“Aloris Type” Quick Change Toolpost w/(5) Holders
Lever Collet Attachment
18N Jacobs “Ball Bearing” Chuck w/Arbor (1/8″ – 3/4″ Capacity)
#5 MT Live Center
Newall Digital Readout
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
